Product Details
Place of Origin: Made in China
Brand Name: wuxi special ceramic
Model Number: rod
Payment & Shipping Terms
Minimum Order Quantity: 10p
Price: us$0.1~us$10/p
Packaging Details: carton,pallet
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 200000p/month
Name: |
Ceramic Rod |
Applications: |
Cookers,floor,water Heaters,gas And Oil Burners |
Color: |
White,yellow |
Features: |
High Voltage Withstand And Excellent Mechanical Properties |
Voltage: |
15000v Withstand |
Forming Method: |
Injection Molding |
Shape: |
Customerized |
Material: |
Alumina Ceramic |
Type: |
Ceramic Rods |
Item: |
Al2o3 Ceramic Parts |
Name: |
Ceramic Rod |
Applications: |
Cookers,floor,water Heaters,gas And Oil Burners |
Color: |
White,yellow |
Features: |
High Voltage Withstand And Excellent Mechanical Properties |
Voltage: |
15000v Withstand |
Forming Method: |
Injection Molding |
Shape: |
Customerized |
Material: |
Alumina Ceramic |
Type: |
Ceramic Rods |
Item: |
Al2o3 Ceramic Parts |

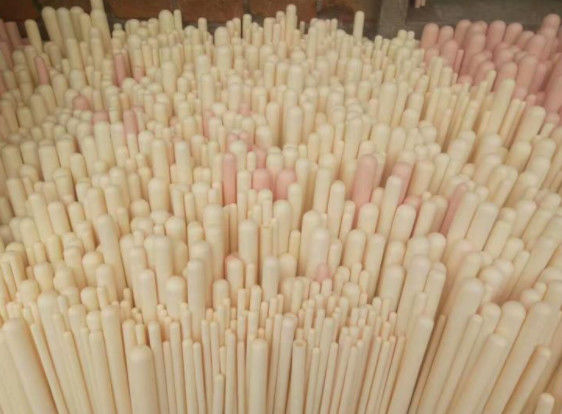

Alumina(Al203)Rods
Main Applications
A. Semiconductor manufacturing equipment parts(chamber parts,insulation flanges,etching equipment parts,wafer chucks)
B. Crusher parts(classifiers,airflow type crushers,beads mills)
C. General Industrial parts(nozzles for laser processing machines,shafts,bearings)
D. High precision,heat resistant tool(positioning jigs,assembly jigs)
E. Wear resistance parts(wire drawing machine guide rollers,yarn paths,rails,guides)
F. Electrical insulation parts(insulators,spacers,bushes)
Specification
| Material code | characteristics | Density(g/cm³) | Young's Moulus(GPa) | Flexural strength(MPa) | Fracture Toughness(MPa*m1/2) | Thermal Expansion RT~800°) | Thermal Conductivity(w/m*k) | Volume Resistivity(Ω*cm) | ||
| ALP01 | General Purpose High Rigidiy | 3.9 | 370 | 440 | 3~4 | 7.7 | 33 | ＞10⋀14 | ||
| Alumina99.5% | ||||||||||
| ALP02 | High Purity High Rigidity | 3.9 | 370 | 450 | 3~4 | 7.9 | 30 | ＞10⋀14 | ||
| Alumina99.9% | ||||||||||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
quality guarantee:mass produce by 100% inspection
